Cordon de brassage rotatif Cat.6 U/UTP 28AWG | Câble Ethernet Gigabit fin pour câblage haute densité

Le cordon de brassage rotatif Cat.6 U/UTP EXW est un câble Ethernet fin de 28 AWG conçu pour les réseaux d'entreprise, le câblage de bureau et les systèmes de câblage structuré haute densité.

Doté d'une gaine colorée rotative avec clips interchangeables, ce cordon de brassage simplifie la gestion des câbles et le codage couleur pour une installation réseau organisée.

Fabriqué avec une structure de câble ultra fine et légère, il offre une transmission Ethernet Gigabit stable et des performances d'installation flexibles dans des espaces limités.

EXW fournit des solutions de cordons de brassage rotatifs OEM et ODM pour les marques de réseaux mondiaux.

Normes & Caractéristiques

Principales fonctionnalités
● Cordon de brassage rotatif Cat.6 U/UTP
● Conception fine 28AWG pour un câblage haute densité
● Prend en charge les applications Gigabit Ethernet
● Botte colorée rotative pour une gestion facile des câbles
● Clips de couleur interchangeables sur 4 côtés pour le codage couleur
● Conception de câble légère et flexible
● Performances de transmission stables
● Connecteurs RJ45 de haute qualité
● Certifié UL ; Conforme RoHS et REACH
● Personnalisation OEM/ODM disponible

Description du Produit

EXW Part No. & Description
6UTXXrotatable : Cat.6 U/UTP Stranded Round Rotatable SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

•  Quality Assurance
100% Cat.6 Component Test for the length within 5M (provide original test data to our customer)

•  Certificate
UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Strandard Color Code
 Standard Package Rate

Length(M)

Cat.6A U/UTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

500

7.03

8.03

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

300

8.44

9.44

2

200

9.79

10.79

3

150

12.66

13.66

5

80

11.67

12.67

10

40

11.25

12.25

Description du Produit

Wire Colour Code
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

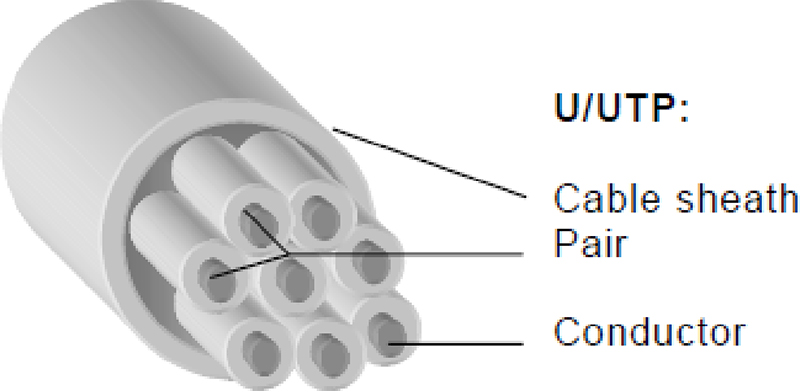

• Component



Conductor:

AWG 28 (Stranded Copper 7x 0.127mm),4-Pair ,8C

Insulation:

PE

Insulation Diameter:

0.64 ± 0.05mm

Nom. Thickness:

0.13mm

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

3.9 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit

Return loss Requirement:

1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min.

Contact Resistance:

20 mΩ max.

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max.



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

Boîtier OEM/ODM

With more than 30 years history and profession R & D team,
EXW has rich expiriences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available

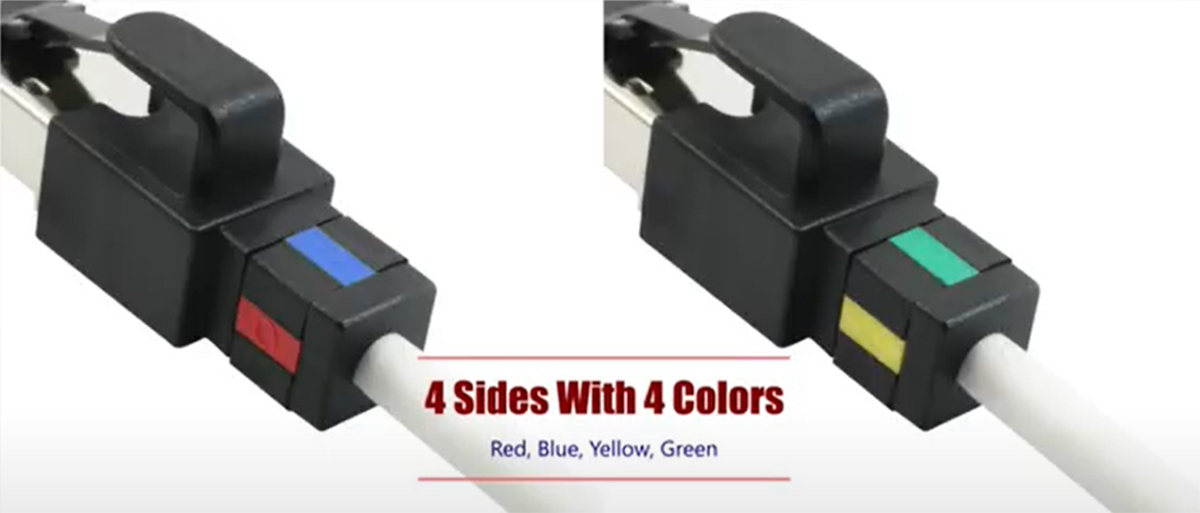

•   4 Sides with 4 Colors.
