Cordon de brassage rotatif Cat.6A S/FTP 30AWG | Câble Ethernet blindé mince 10G pour câblage haute densité

Le cordon de brassage S/FTP rotatif Cat.6A EXW est un câble Ethernet 10G blindé mince de 30 AWG conçu pour les centres de données haute densité, les réseaux d'entreprise et les systèmes de câblage structuré.

Doté d'une gaine colorée rotative avec clips interchangeables, ce cordon de brassage simplifie la gestion des câbles et le codage couleur dans les environnements réseau haute densité.

Fabriqué avec une structure de câble S/FTP ultra fine et des connecteurs RJ45 de haute qualité, il offre une transmission stable, une excellente protection EMI et des performances d'installation flexibles.

EXW fournit des solutions de cordons de brassage rotatifs OEM et ODM pour les marques de réseaux mondiaux.

Normes & Caractéristiques

Principales fonctionnalités
● Cordon de brassage rotatif Cat.6A S/FTP
● Conception fine 30 AWG pour un câblage haute densité
● Prend en charge les applications Ethernet 10G
● Botte colorée rotative pour une gestion facile des câbles
● Clips de couleur interchangeables sur 4 côtés pour le codage couleur
● Excellente protection EMI avec blindage S/FTP
● Conception de câble légère et flexible
● Connecteurs RJ45 de haute qualité
● Certifié UL ; Conforme RoHS et REACH
● Personnalisation OEM/ODM disponible

Description du Produit

EXW Part No. & Description
6ASSXXRotatable  : Cat.6A S/FTP Stranded Round Rotatable SLIM Patch Cord, Molded, PVC/LSOH/TPE/PUR

•  Quality Assurance
100% Cat.6A Component Test for the length within 5M (provide original test data to our customer)

•  Certificate
UL/ETL/4PPoE/CE Certified & Comply with RoHS & REACH

• Application
* Ethernet Networking
* Computer Networking Project
* Audio & Data Transmission
* Digital Networking
* Broadband Networking Communication
 EXW Strandard Color Code
 Standard Package Rate

Length(M)

Cat.6A S/FTP (pcs)

N.W(KG)

G.W(KG)

Packing Method

Carton Size

0.5

200

6.36

7.36

1pc/blank bag with label

400*375*290MM(0.0435CBM)

1

120

6.28

7.58

2

100

9.03

10.03

3

80

9.89

10.89

5

50

9.75

10.75

10

25

9.73

10.73

Description du Produit

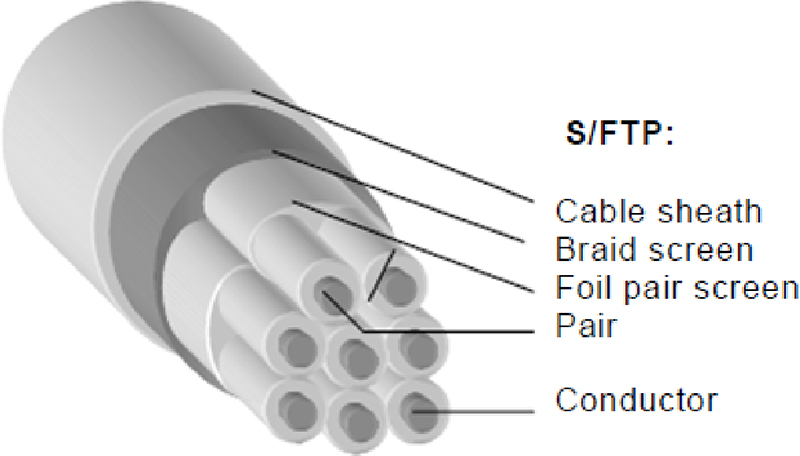

Cable Constructure
white - blue/blue
white - orange/orange
white - green/green
white - brown/brown

• Component



Conductor:

AWG 30 (Stranded Copper 7x 0.1mm),4-Pair ,8C

Insulation:

PE

Insulation Diameter:

0.68 ± 0.05mm

Braid Shield (Tinned Copper): 16/5/0.10T
Coverage: ≥50%

Jacket:

PVC/LSOH/TPE/PUR

Jacket Diameter:

4.5 ± 0.2mm



• Electrical Characteristics



NEXT Requirement:

1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit

Return loss Requirement:

1dB margin compared to ANSI/TIA/EIA-568-C.2 Limit

Current Rating:

1.5 A

Insulation Resistance:

100 MΩ min.

Contact Resistance:

20 mΩ max.

Dielectric Strength:

500 VAC (rms)

Voltage:

72 VDC max.



• Mechanical characteristics



Insertion Life:

750 mating cycles

Installation Temperature:

0/50℃

Operation & Storage Temperature:

-20/60℃

Cable to Plug Tensile Strength:

20pound(min)

Pulling Force:

10N(max)

Boîtier OEM/ODM

OEM/ODM Cases
With more than 30 years history and profession R & D team
EXW has rich expiriences in producing OEM/ODM cases.
•  Customized Logo on Plug & Boot
•  Special Printing on Cable
•  Special Design on Package & Label
•  Independent Package
•  Different Color & Different Lengths Available
•   4 Sides with 4 Colors.
